Mechanical edge


buy_online

CMO_G


Mechanical safety edges double contact with redundancy and walking foot lengths from ml.1,20 up to ml. 5.00

The device consists of:

An aluminum profile attached to the column or to the gate if used as safety on the mobile part;

A rubber extruded profile that can be cut to fit the wing;

Group top with two microswitches for wire tension control and detecting obstacles and a third switch for redundancy, management board with terminal block;

Lower group and a steel wire

Technical specifications

Model CMO G
Lenght da cm. 120  a cm. 500
Height cm. 7,20
Contact rating 0,5 A  -  24Vcc/ca
Operating temperature -10°C  ÷  +55°C  (-14°F  ÷  +131°F)
Ip protections IP 55
Accessories Installation instructions

CFSECUR


Safety edge with double contact with redundancy and sensitive over entire length (NC/8K2)

CFSECUR

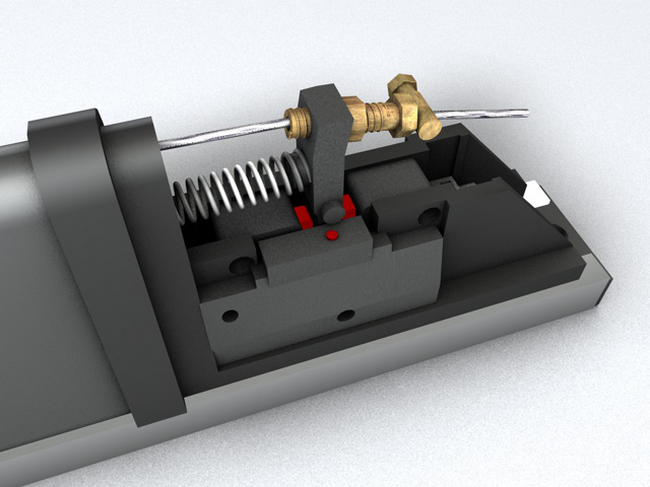

s_cmo_sup

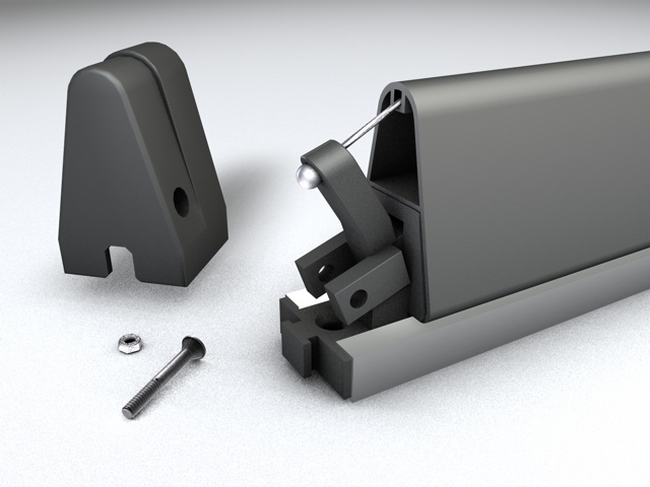

s_cmo_inf

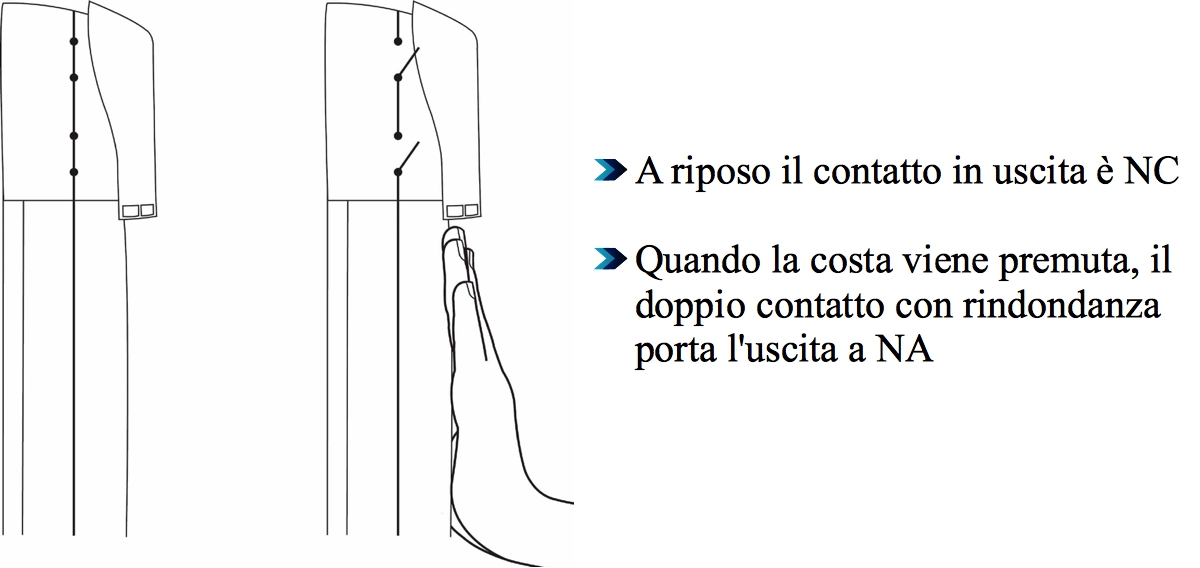

cfsecur-schema

CMM


Safety edge with walking foot (NC) flush with lengths from ml. to 1.20 ml. 5.00.

The device consists of:

A profile in aluminum support to be fixed to the column or to the gate if used as security on the mobile part;

A Profile in extruded rubber height 60 mm., Upper group with No. 2 microswitches for cable voltage and sensing obstacles, coupon with connecting terminal;

Lower movable group and a steel wire.

Techinical specifications

Model CMM
Lenght da cm. 120 a cm. 500
Height cm. 7,20
Contact rating 0,5 A  -  24Vcc/ca
Operating temperature -10°C  ÷  +55°C  (-14°F  ÷  +131°F)
IP protection IP 55
Accessories Installation instructions

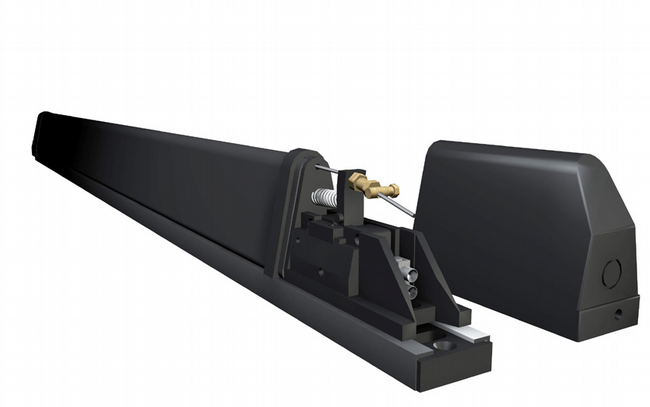

s_cmm

s_cmm_a

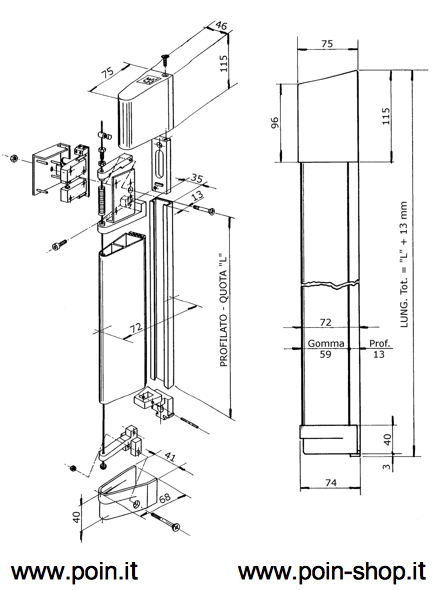

s_quote

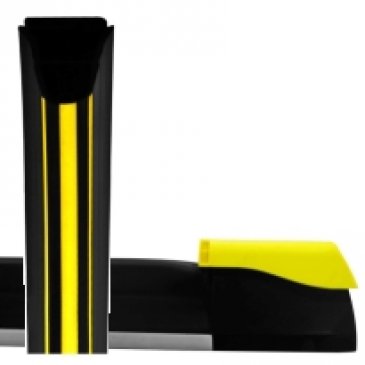

CF


Mechanical edge from 1,50 m to 2,50 m

<<< INSTRUCTIONS >>>

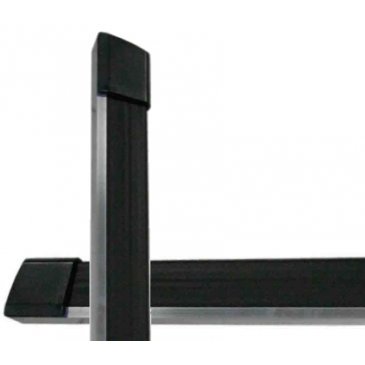

CF

CFMOP


Mechanical safety edges with sensitivity in the upper and lower parts with lengths of up to ml.1,50 ml. 2.50

The device consists of:

A profile in aluminum support to be fixed to the column or to the gate if used as security on the mobile part;

A profile in extruded rubber that can be cut at the leaf height measurement;

Upper and lower group of detection mechanisms, microswitches for wire tension control and obstacle detection and caps mordibe deformable material.

Techinical specifications

Model CFMOP
Lenght da cm. 150 a cm. 250
Height cm. 7,20
Operating temperature -10°C  ÷  +60°C  (-14°F  ÷  +140°F)
Ip protections IP 54

S_Cfmop

INFRARED BARRIERS, VERSION FOR SECURITY

Security barrier for garage doors and gates, 5 rays every 50 cm, black aluminium, polycarbonate, optical synchronisation, 3 range up levels, light to indicate the quality of reception. Composed of transmitter and receiver. Power supply 12/24 Vac/dc. Size: b23 x d23mm.

Models:

ACTIVE-S505    (50   cm   5   rays)

ACTIVE-S1010  (100 cm   10 rays)

ACTIVE-S1515  (150 cm   15 rays)

ACTIVE-S2020  (200 cm   20 rays)

<<< INSTRUCTIONS >>>

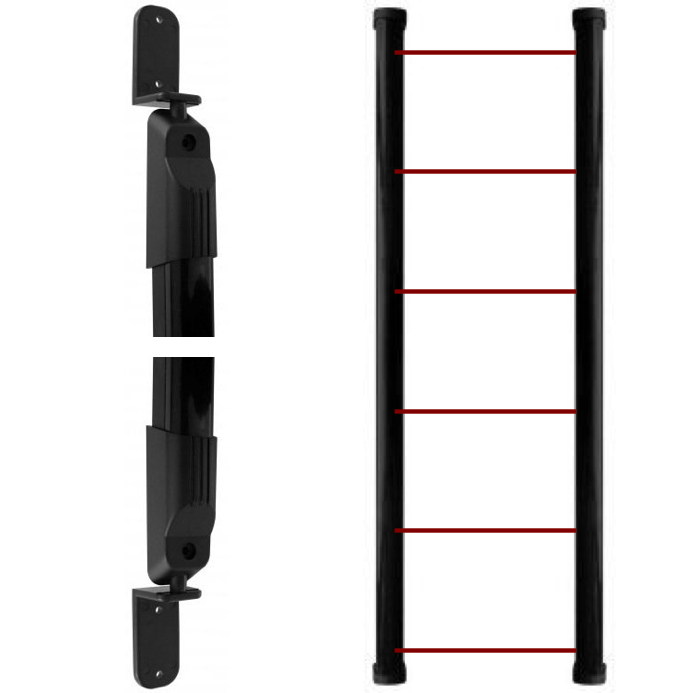

s-active

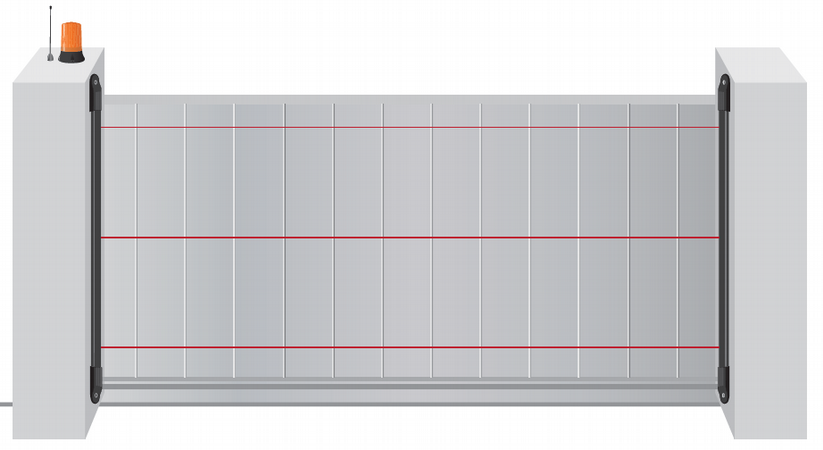

 active-s_cancello

Security barrier for automatic doors, black aluminium, polycarbonate, optical synchronisation, 3 range up levels, light to indicate the quality of reception. Composed of transmitter and receiver. Power supply 12/24 Vac/dc. Size: b23 x d23mm.

Models:

ACTIVE-DOOR150  (150 cm  30 rays)

ACTIVE-DOOR200  (200 cm  40 rays)

ACTIVE-DOOR250  (250 cm  50 rays)

<<< INSTRUCTIONS >>>

s-active

INFRARED BARRIERS, VERSION FOR ALARM

Alarm barriers for passages, (2 rays every 50 cm/ 5 rays every 50 cm), clack aluminium, polycarbonate, optical synchronisation, 3 range up levels, light for the quality reception. Composed of transmitter and receiver. Power supply 12/24 Vac/dc. Size: b23 x p23mm

Models:

ACTIVE-A502    (50   cm   2   rays)

ACTIVE-A1004  (100 cm   4   rays)

ACTIVE-A1506  (150 cm   6   rays)

ACTIVE-A2008  (200 cm   8   rays)

ACTIVE-A505    (50   cm   5   rays)

ACTIVE-A1010  (100 cm   10 rays)

ACTIVE-A1515  (150 cm   15 rays)

ACTIVE-A2020  (200 cm   20 rays)

<<< INSTRUCTIONS >>>

s-active

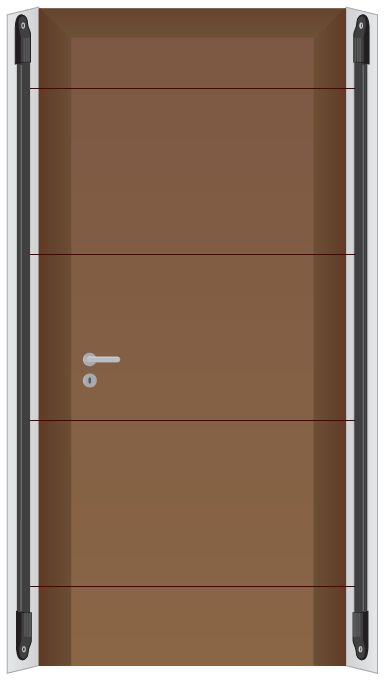

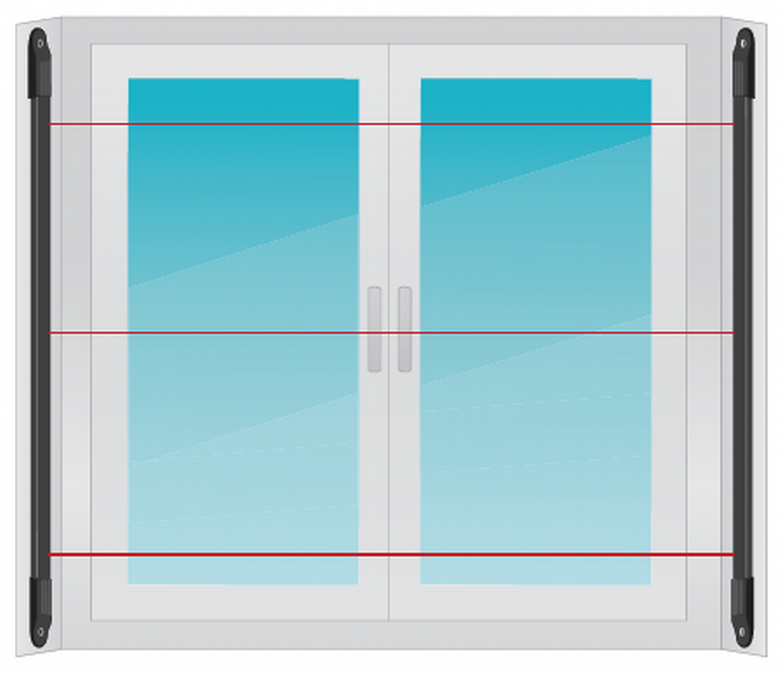

 active-a_finestra                            active-a_porta

ACCESSORIES FOR ACTIVE-A, ACTIVE-S AND ACTIVE-DOOR

AC-CLIPKit for fixing clips (no. 4 for pack)

AC-TAPKit for rubber closing plugs (no. 4 for pack)

AC-ALIM-1A - FDeeder for ACTIVE max 1A. 12/24 ac/dc
